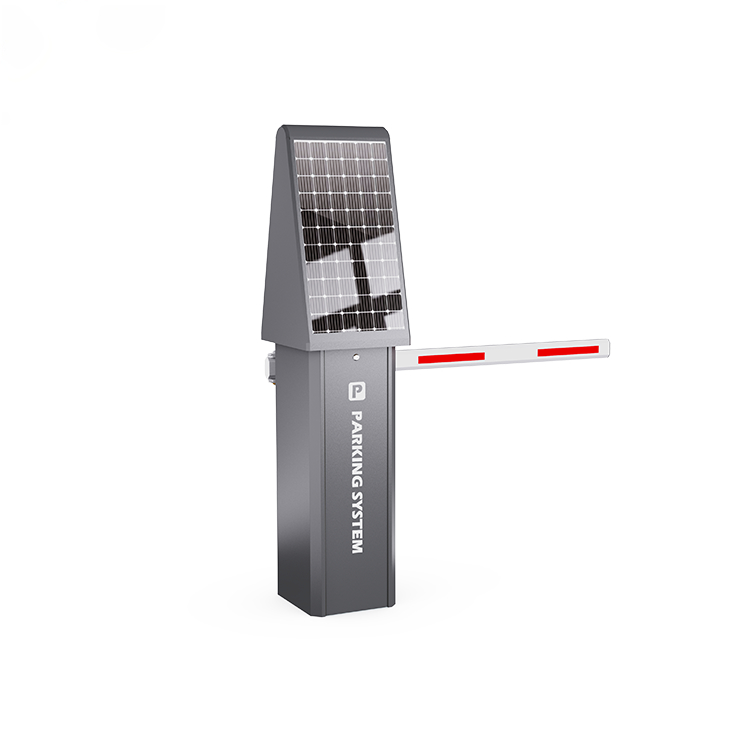

Solar Powered Automatic Barrier Gate with IP54 Protection and High Precision Vehicle Detection

원래 장소	중국 심천.
브랜드 이름	SINOMATIC
인증	CE/ ISO
모델 번호	DZ-2339

제품 세부 정보

진보적 수동 해제:

예

서비스:

OEM/ODM 사용 가능

팔 길이:

Max. 최대. 6 meter 6미터

순 중량:

약 70 킬로그램

듀티 사이클:

100%

주택 자료:

2.0 밀리미터 냉연강판 시트

붐 길이:

Max.6m

작업 온도:

-35 6+ 65 ℃

팔 재료:

알루미늄 합금/탄소 섬유

애플리케이션:

과도한 크기의 교통 흐름 지역, 대중 교통 솔루션, 실외, 통행료, 주차 솔루션

모터 파워:

160W

용법:

도로 트래픽 안전

강조하다:

IP54 Protection Automatic Barrier Gate

Solar Powered Boom Barrier Gate

High Precision Vehicle Detection Vehicle Barrier Gate

지불 및 배송 조건

최소 주문 수량

샘플 주문이 허용됩니다

가격

negotiable

포장 세부 사항

상자/합판 상자/팔레트

배달 시간

지불을받은 후 5-10 일

지불 조건

T/T, Western Union, Moneygram

공급 능력

한 달에 10,000 개

제품 설명

Solar Powered Automatic Barrier Gate with 100% Duty Cycle

High Precision Vehicle Detection and Robust Construction

All-in-One Solar Powered Barrier Gate with maximum arm length of 6m for comprehensive vehicle access control solutions.

Product Overview

Our solar-powered barrier gate combines advanced technology with environmental sustainability, delivering a reliable and cost-effective access control solution for diverse applications worldwide.

Key Features

Solar-Powered Efficiency: High-quality 24V photovoltaic solar panels fully charge the battery in 5 hours of sunlight. Operates up to 10,000 cycles without sunlight, ideal for remote locations.
High-Precision Detection: Integrated ground-sensing coils and infrared sensors provide <1 second response time for all vehicle sizes.
Durable Construction: High-strength steel with anti-rust coatings withstands extreme temperatures (-35℃ to 75℃).
Simple Installation: No complex wiring required. Compatible with asphalt, concrete, and gravel surfaces.
Advanced Safety: Includes infrared anti-pinch sensors, pressure-wave anti-impact devices, and anti-tampering alarm.

Applications

Commercial parking lots

Residential parking areas

Industrial parks

Event venues

Rural communities

Remote locations

Customization Options

Barrier arm length customizable up to 6 meters for large vehicles. Control system integrates with existing security/access control software for seamless operation.

Quality Assurance

All products undergo rigorous testing to meet international standards. Includes comprehensive after-sales service with technical support, spare parts, and maintenance.

Technical Specifications

Material	Steel
Motor	DC Brushless
Running Speed	1.2s-3s, 2.5s-6s (adjustable)
Motor No-load speed	1850r/min
Protection Class	IP54
Rated Power	160W
Input Voltage	DC 24V, AC220V OR 110V
Working temperature	-35℃~75℃
Package size	1205550 cm
Package weight	70kg
